Cutting-Edge C-Arm Technology for Superior Medical Imaging

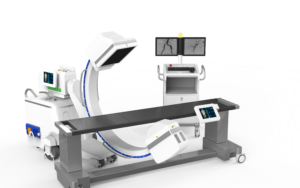

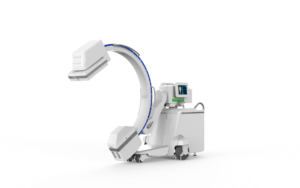

Spacious C-Arm Design
The Taurus boasts an 826mm depth and generous working space, making it easy to position and maneuver, even for obese patients, ensuring optimal imaging angles in any procedure.

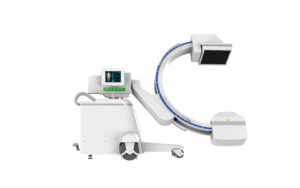

Motorized Movements
Complete with motorized controls for SID adjustments (955mm to 1155mm), orbital rotation (±180°), vertical movement (200mm), and pillar movement (400mm), allowing for precise and effortless positioning during interventions.
High-Performance X-Ray Generator
The 25kW generator supports a broad range of applications with a voltage range of 40-125kV and currents from 0.3mA to 100mA, ensuring reliable performance for both continuous and pulsed fluoroscopy as well as radiography.
Rotating Anode X-Ray Tube
Equipped with a rotating anode and a thermal capacity of 1300 KHU, the tube supports intensive use with forced air cooling to maintain optimal performance during extended procedures.
Flat Panel Detector
A 30cm x 30cm flat panel detector delivers high-resolution images with a pixel size of 154μm, ensuring minimal patient repositioning and maximum diagnostic accuracy.
User-Friendly Controls
Features a touch screen control panel that can be integrated into the operating table, allowing surgeons to directly manage KV, mA, mAs, and other parameters without the need for additional staff.
Precision at Your Fingertips

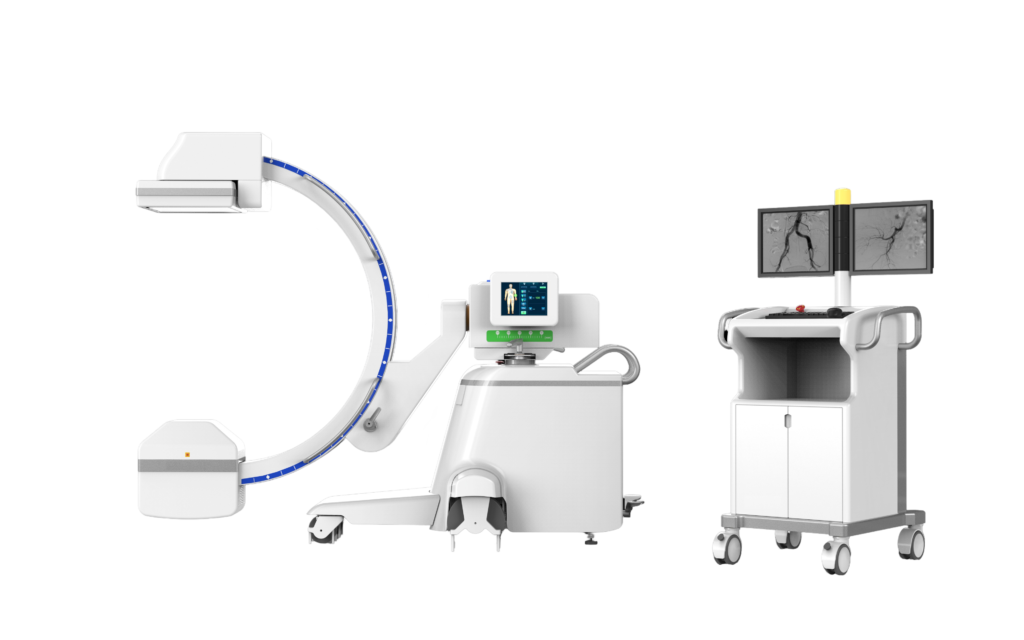

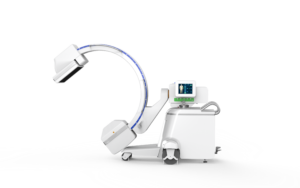

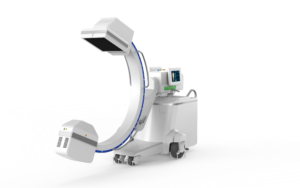

Motorized Movements: Precision and Ease
The IMS Taurus C-Arm offers fully motorized movements, including SID adjustment (955mm to 1155mm), orbital rotation (±180°), vertical movement (200mm), and pillar movement (400mm). These features ensure precise positioning with minimal effort, enhancing workflow efficiency and reducing manual handling. The system’s motorized panoramic rotation of 120° provides broad coverage, making the IMS Taurus a reliable and efficient tool in any clinical setting.

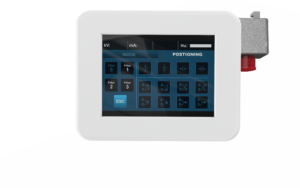

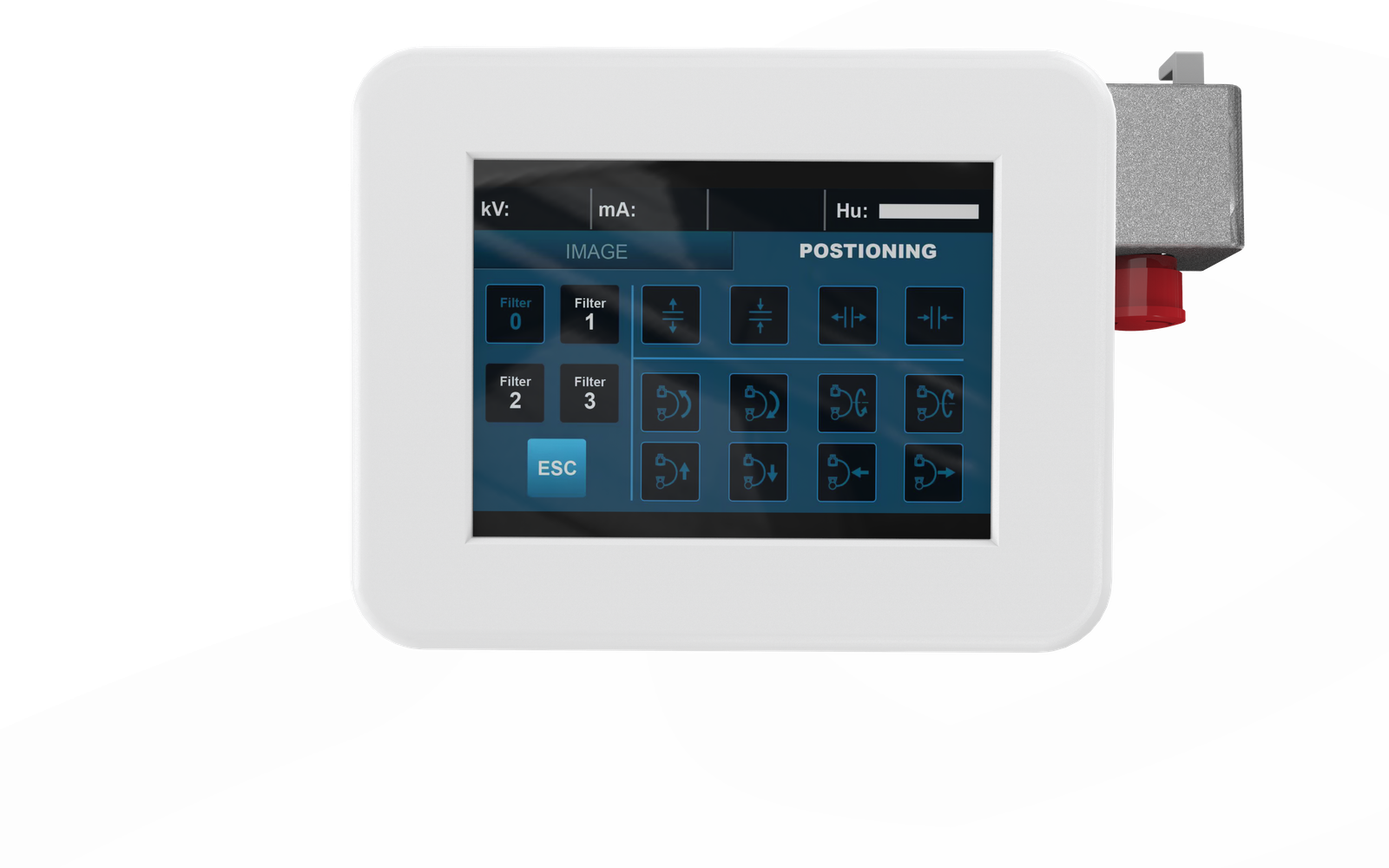

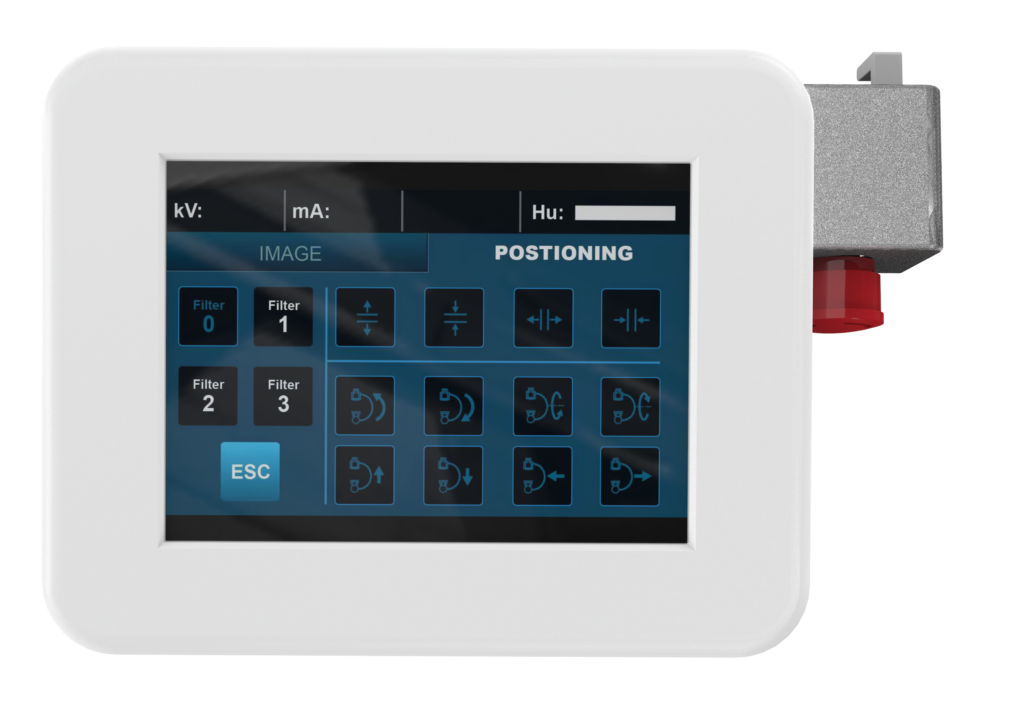

Triple Touch Screens
The IMS Taurus features three touch screens for intuitive, real-time control of key imaging parameters like KV, mA, and mAs. One screen is conveniently installed on the operating table, providing immediate access during procedures, while the others are positioned for optimal control. This setup streamlines operations, enhances accuracy, and ensures that all critical controls are always within reach, boosting precision, safety, and efficiency in every procedure.
Advanced Imaging Capabilities
Precision and Clarity
The IMS Taurus is equipped with advanced imaging technologies that elevate diagnostic precision. It features Digital Subtraction Angiography (DSA) for clear vascular imaging, Roadmap and Landmark tools for accurate guidance during procedures, and a high-resolution 30cm x 30cm flat panel detector with 154μm pixel size for detailed imaging. With dynamic imaging modes and a rotating anode X-ray tube with 1300 KHU thermal capacity, the IMS Taurus delivers consistent, high-quality images even during complex or lengthy procedures, ensuring precise and reliable diagnostics.

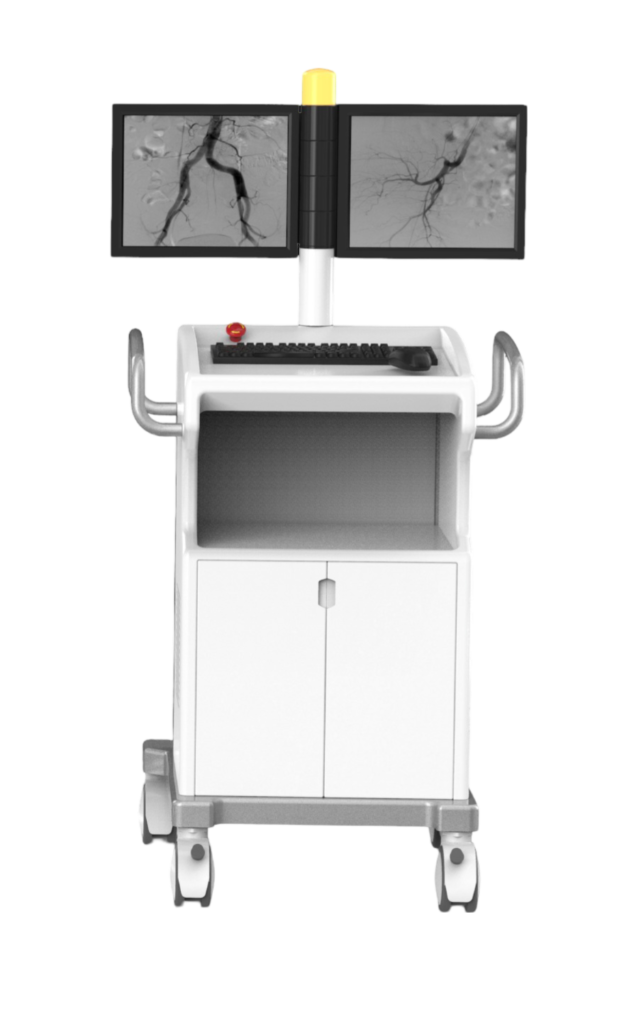

Your Imaging Command Center
The IMS Taurus’s workstation is a central hub for precision imaging, featuring dual 21-inch medical-grade displays that deliver crystal-clear visuals crucial for accurate diagnostics. Powered by an Intel i5 processor with 8GB of RAM, it ensures smooth processing of complex imaging data. The integrated software offers advanced tools like infinite zoom, measurement, and real-time image processing, enhancing diagnostic capabilities. With full DICOM 3.0 compatibility, the workstation seamlessly integrates with PACS, ensuring efficient data management and sharing. Designed for user-friendliness and workflow efficiency, this workstation empowers healthcare professionals to deliver precise and reliable imaging results.
Technical Specifications
